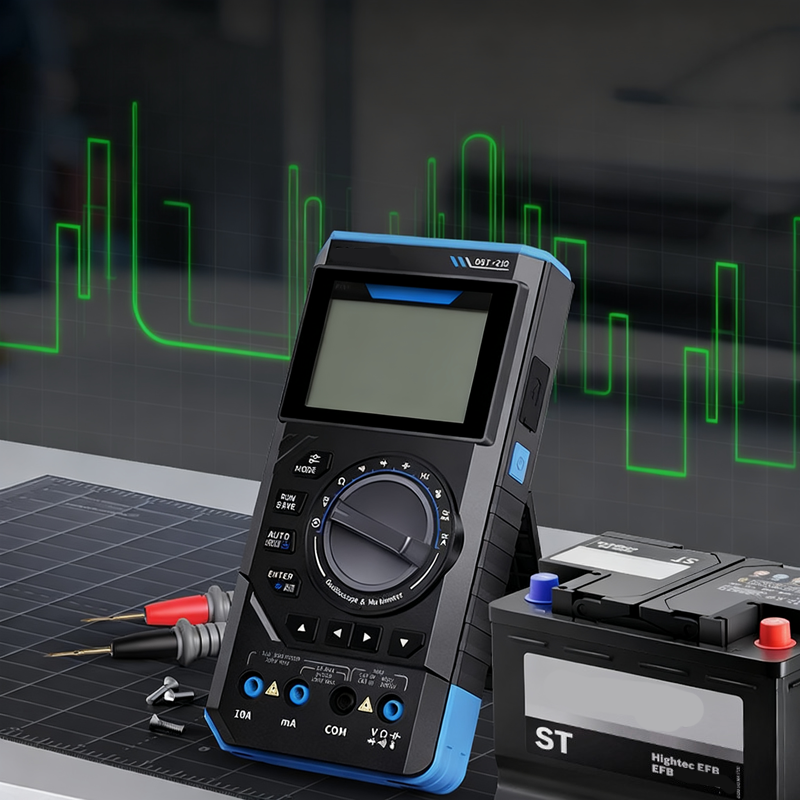

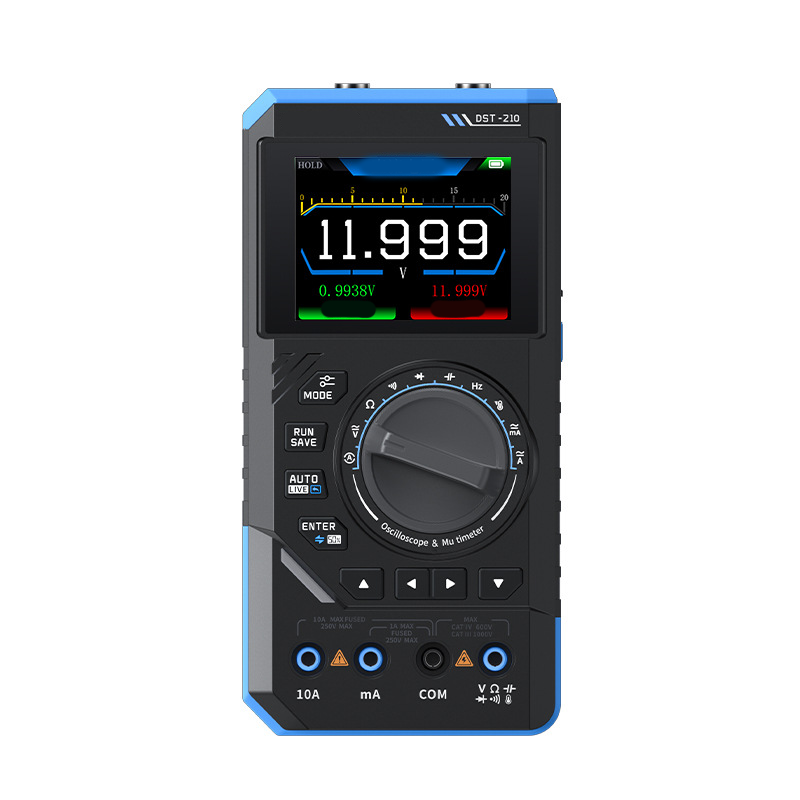

3-in-1 Handheld Digital Oscilloscope Multimeter

FEATURES

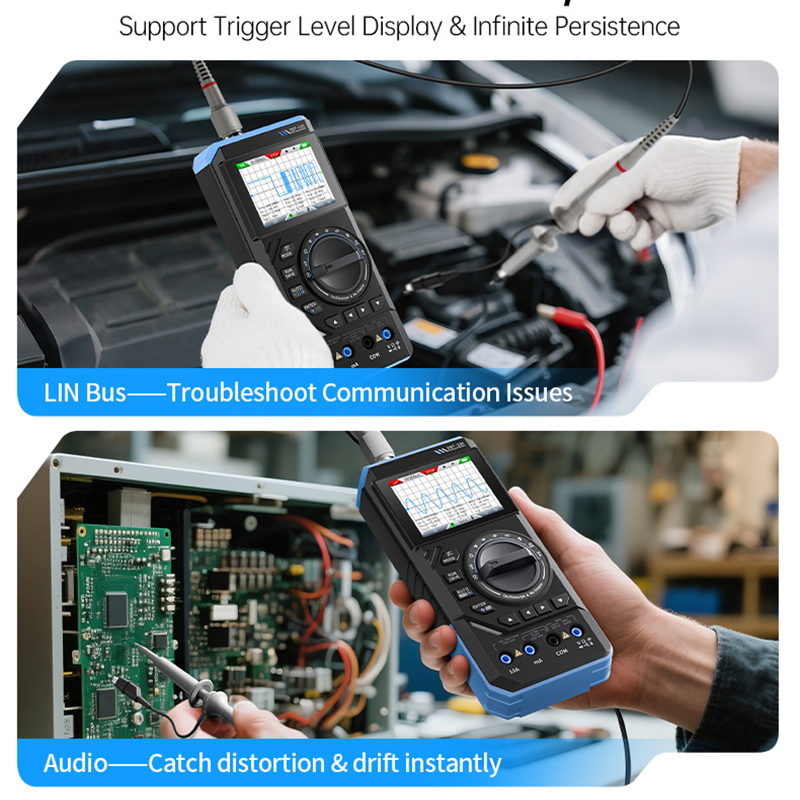

HIGH-PERFORMANCE OSCILLOSCOPE: Features a 10 MHz bandwidth and 48 MSa/s sampling rate for precise waveform analysis. Easily capture, save, and export waveform images, simplifying circuit troubleshooting and making your diagnostic process more efficient.

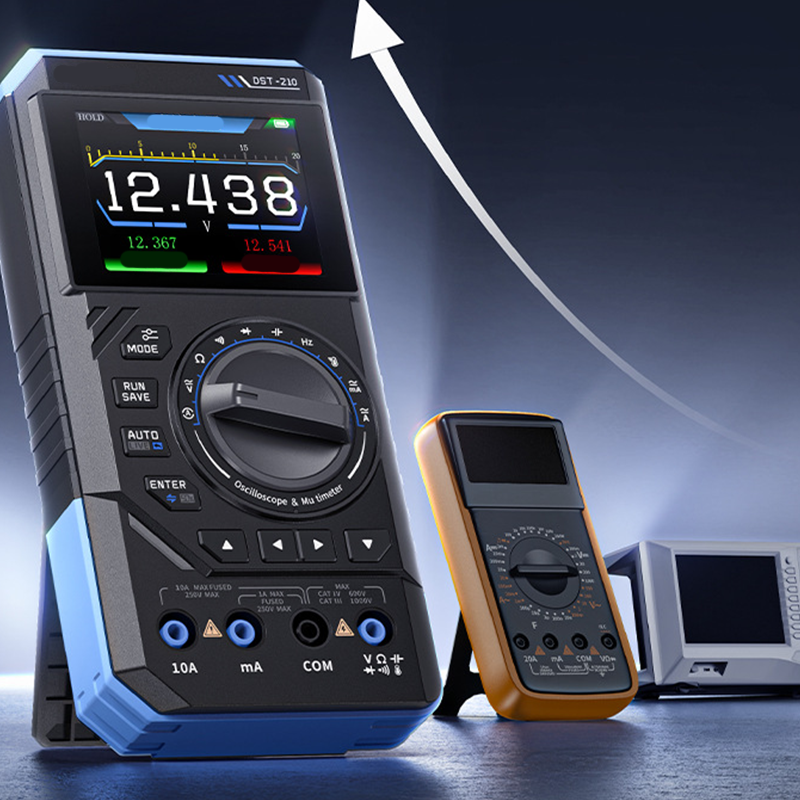

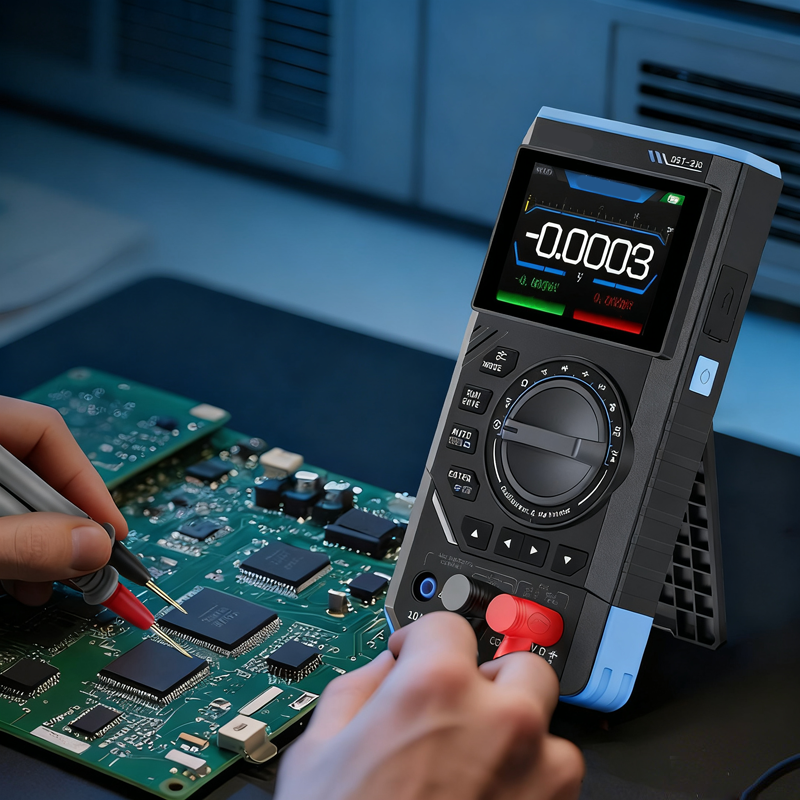

PRECISION DIGITAL MULTIMETER: Measures a wide range of parameters including AC/DC voltage, current, resistance, and temperature with high accuracy. Includes curve recording and max/min value functions, providing comprehensive data for detailed analysis.

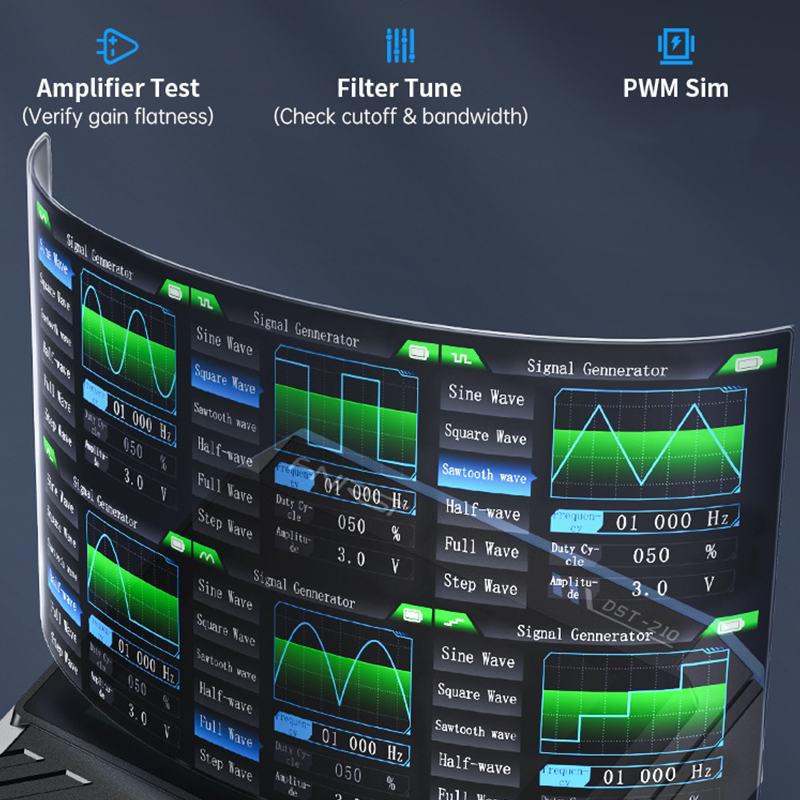

ADJUSTABLE SIGNAL GENERATOR: Outputs 13 different standard waveforms up to 50 KHz with an adjustable amplitude from 0.1V to 3.0V. Perfectly suited for simulating sensor signals and testing various electronic circuits.

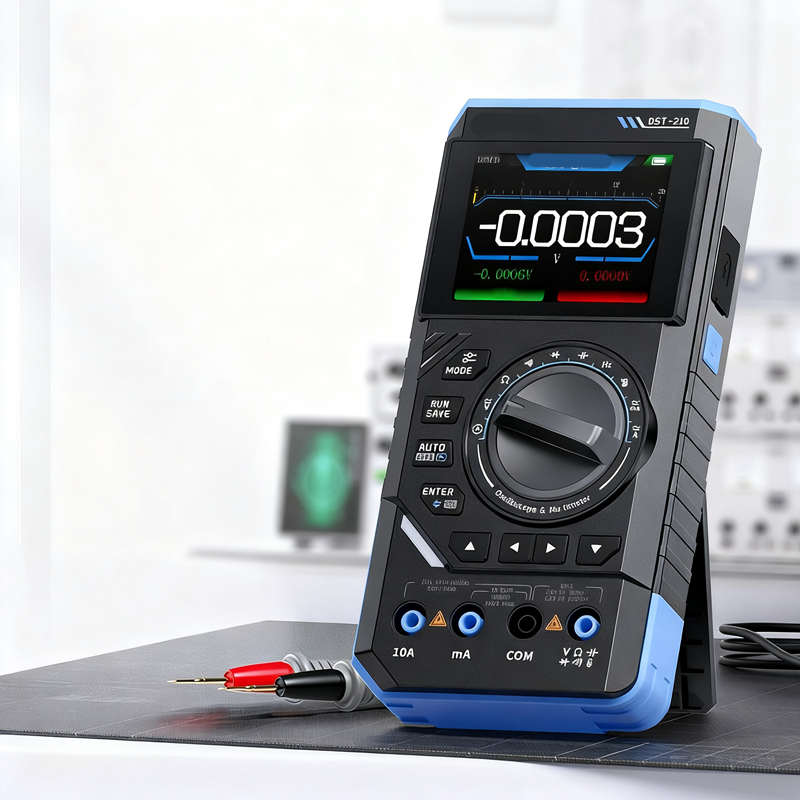

USER-FOCUSED INTERFACE: Equipped with a clear 2.8-inch color screen, an intuitive function dial, and a 3000mAh rechargeable battery. Enjoy easy operation and extended use in the field, enhancing productivity and convenience.

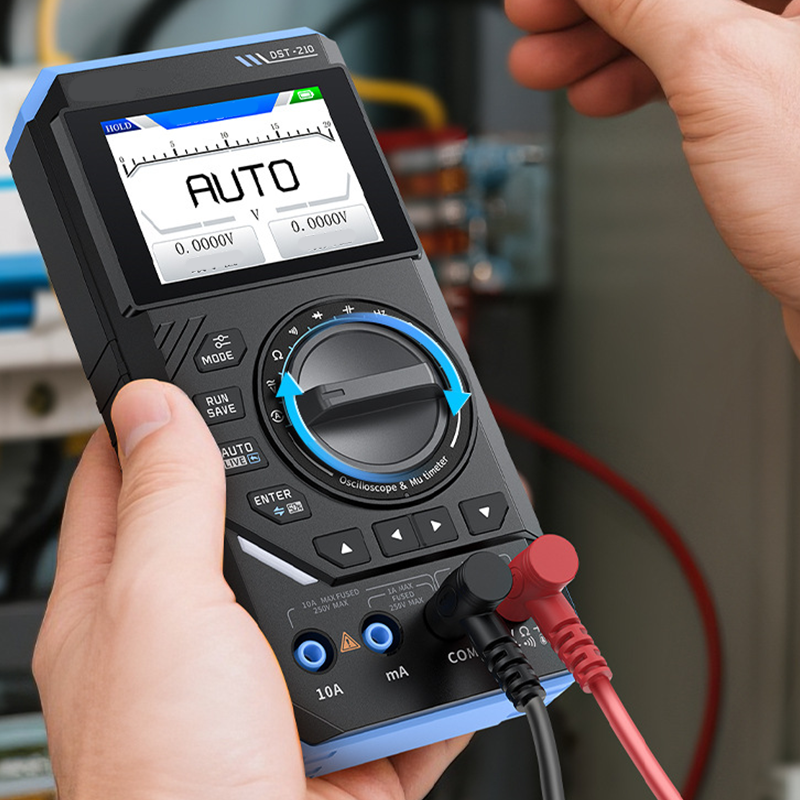

CONVENIENT FUNCTION DIAL: Allows for fast and accurate switching between measurement modes. The ergonomic design provides stable handling, improving measurement efficiency for fieldwork, workshops, and automotive diagnostics without complex menu navigation.

SPEC

Bandwidth: 1 MHz, 10 MHz

Size: 177.43 * 87.47 * 34.5 mm (6.99 * 3.44 * 1.36 in)

Battery Capacity: 3000mAh

Power Supply: Type-C (5V/1A)

Package Include: 1 * 3-in-1 Handheld Digital Oscilloscope Multimeter

NOTES

Please read the user manual carefully before operation to ensure safety and proper use.

Do not measure voltage exceeding the maximum rated input to avoid damaging the device.

Ensure the correct function and range are selected on the dial before connecting the test leads.

Please allow a small error due to manual measurement. Please make sure you do not mind before purchasing.
